Logistic Regression with Single Predictor in R

glm
logistic regression
Complete guide to logistic regression with single predictor in R programming. Tutorial with practical examples and code.
Published

September 18, 2023

Introduction

Logistic regression is used when you want to predict a binary outcome (yes/no, success/failure) based on one predictor variable. Unlike linear regression, it models the probability of an event occurring using the logistic function, which ensures predictions stay between 0 and 1.

Getting Started

library(tidyverse)
library(palmerpenguins)

Example 1: Basic Usage

The Problem

We want to predict whether a penguin is from the Adelie species based on its bill length. This is a binary classification problem where we’re modeling the probability of being Adelie versus not Adelie.

Step 1: Prepare the Data

We’ll create a binary outcome variable and examine our data structure.

penguins_clean <- penguins |>
  filter(!is.na(bill_length_mm), !is.na(species)) |>
  mutate(is_adelie = ifelse(species == "Adelie", 1, 0))

head(penguins_clean)

We now have a dataset with a binary variable is_adelie where 1 means Adelie and 0 means other species.

Step 2: Visualize the Relationship

Before modeling, let’s see how bill length relates to species.

ggplot(penguins_clean, aes(x = bill_length_mm, y = is_adelie)) +
  geom_point(alpha = 0.6) +
  geom_smooth(method = "glm", method.args = list(family = "binomial")) +
  labs(x = "Bill Length (mm)", y = "Probability of being Adelie")

Logistic regression sigmoid curve in R showing probability of a penguin being Adelie species as a function of bill length, fitted with a single predictor glm() model in ggplot2

The smooth curve shows the logistic relationship - shorter bills are associated with higher probability of being Adelie.

Step 3: Fit the Logistic Model

We use glm() with family = “binomial” to fit our logistic regression.

model <- glm(is_adelie ~ bill_length_mm,
            data = penguins_clean,
            family = binomial)

summary(model)

The negative coefficient indicates that as bill length increases, the probability of being Adelie decreases.

Step 4: Make Predictions

Let’s predict probabilities for specific bill lengths.

new_data <- data.frame(bill_length_mm = c(35, 40, 45, 50))
predictions <- predict(model, new_data, type = "response")
data.frame(bill_length = new_data$bill_length_mm,
          probability_adelie = round(predictions, 3))

These probabilities show how bill length affects the likelihood of a penguin being Adelie.

Example 2: Practical Application

The Problem

A researcher wants to determine if a car’s weight can predict whether it has high fuel efficiency (mpg > 20). This helps understand the relationship between vehicle weight and fuel economy for purchasing decisions.

Step 1: Create Binary Outcome

We’ll transform the continuous mpg variable into a binary high/low efficiency indicator.

mtcars_binary <- mtcars |>
  mutate(high_mpg = ifelse(mpg > 20, 1, 0))

table(mtcars_binary$high_mpg)

We have 14 cars with high efficiency (>20 mpg) and 18 with lower efficiency.

Step 2: Explore the Data

Let’s visualize how weight relates to fuel efficiency.

ggplot(mtcars_binary, aes(x = wt, y = high_mpg)) +
  geom_point() +
  geom_smooth(method = "glm", method.args = list(family = "binomial")) +
  labs(x = "Weight (1000 lbs)", y = "Probability of High MPG")

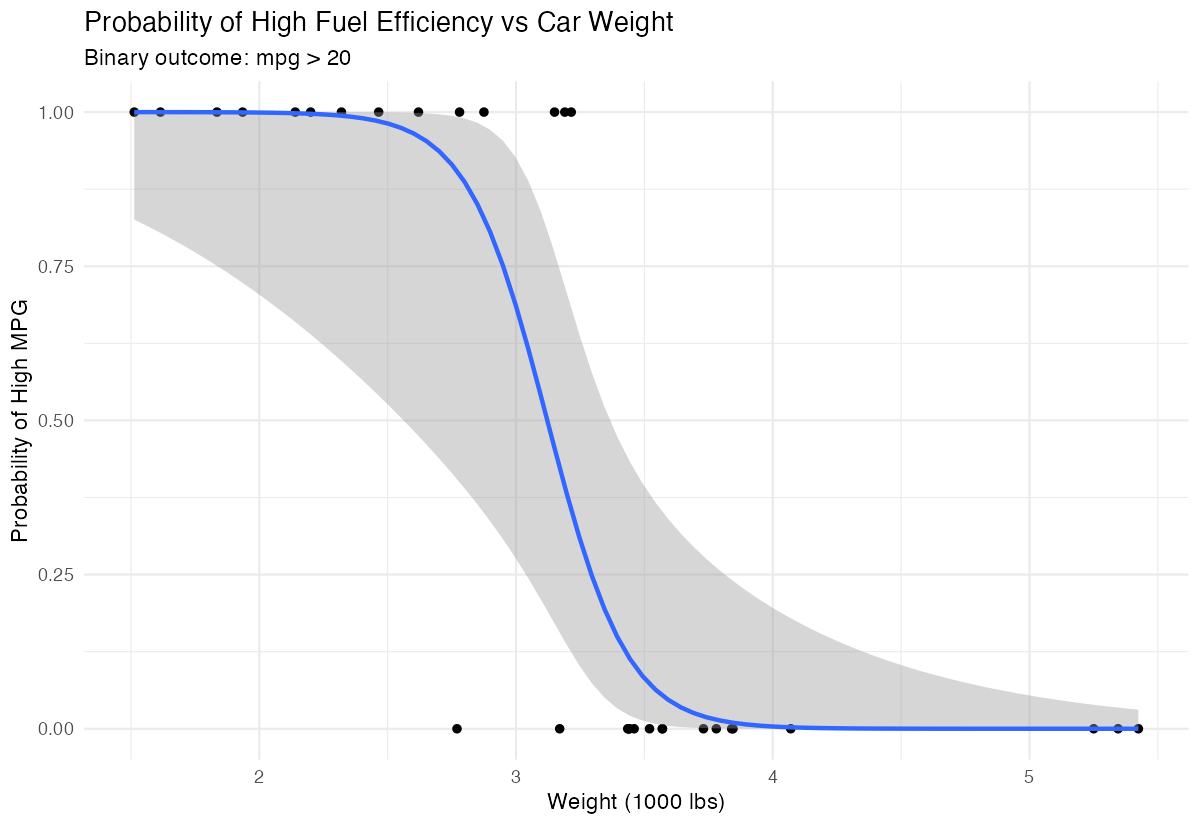

Single-predictor logistic regression curve in R showing probability of high fuel efficiency (mpg > 20) as a function of car weight from the mtcars dataset, fitted with glm() in ggplot2

Heavier cars clearly have lower probability of achieving high fuel efficiency.

Step 3: Build the Model

We fit a logistic regression to quantify this relationship.

weight_model <- glm(high_mpg ~ wt,
                   data = mtcars_binary,
                   family = binomial)

summary(weight_model)

The significant negative coefficient confirms that weight strongly predicts lower fuel efficiency.

Step 4: Calculate Odds Ratios

Odds ratios help interpret the practical impact of weight changes.

exp(coef(weight_model))
exp(confint(weight_model))

For each additional 1000 lbs, the odds of high fuel efficiency multiply by this factor (less than 1 means decreased odds).

Step 5: Evaluate Model Performance

We’ll check how well our model classifies cars.

predicted_probs <- predict(weight_model, type = "response")
predicted_class <- ifelse(predicted_probs > 0.5, 1, 0)
confusion_matrix <- table(Actual = mtcars_binary$high_mpg,
                         Predicted = predicted_class)
print(confusion_matrix)

This confusion matrix shows our model’s accuracy in predicting high versus low fuel efficiency.

Summary

  • Logistic regression models binary outcomes using predictor variables and the logistic function
  • Use glm() with family = binomial to fit logistic regression models in R
  • Coefficients represent changes in log-odds; negative coefficients decrease probability of success
  • Convert coefficients using exp() to get odds ratios for easier interpretation

  • Always visualize your data first and evaluate model performance with predicted probabilities
